Short Description:

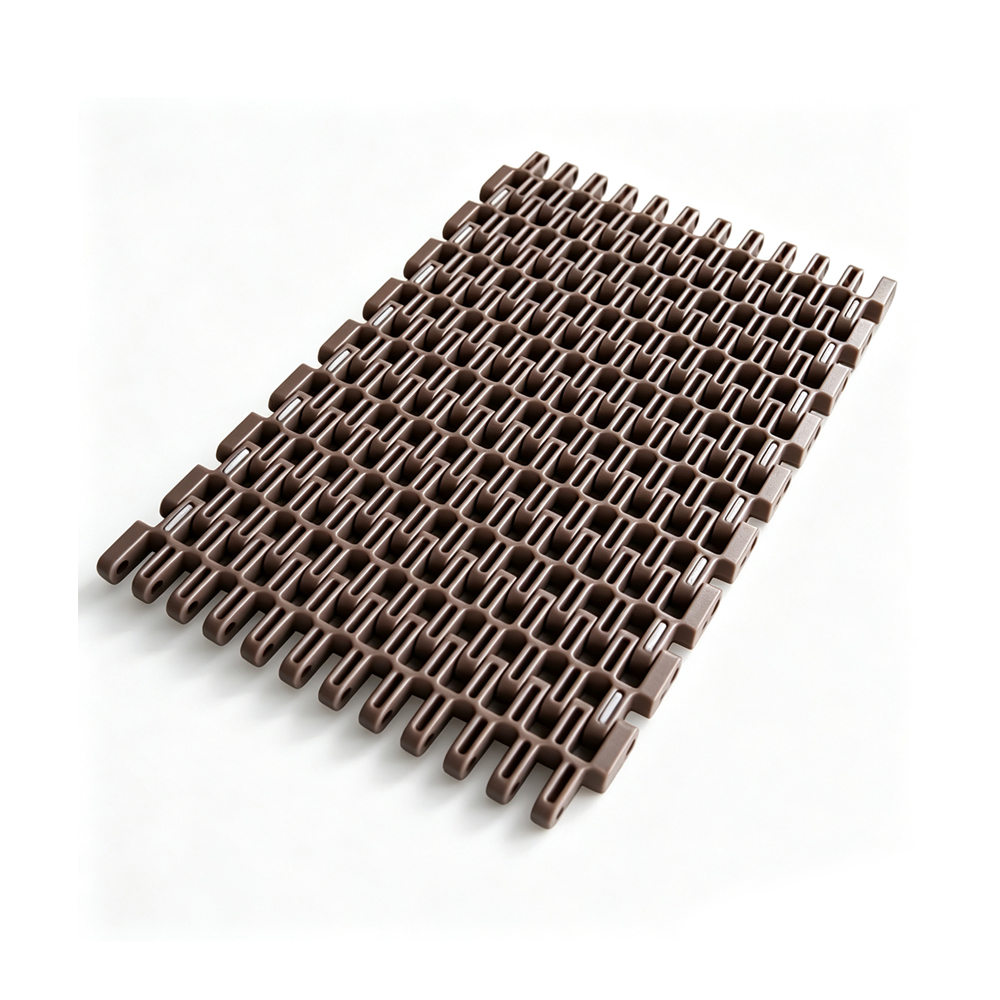

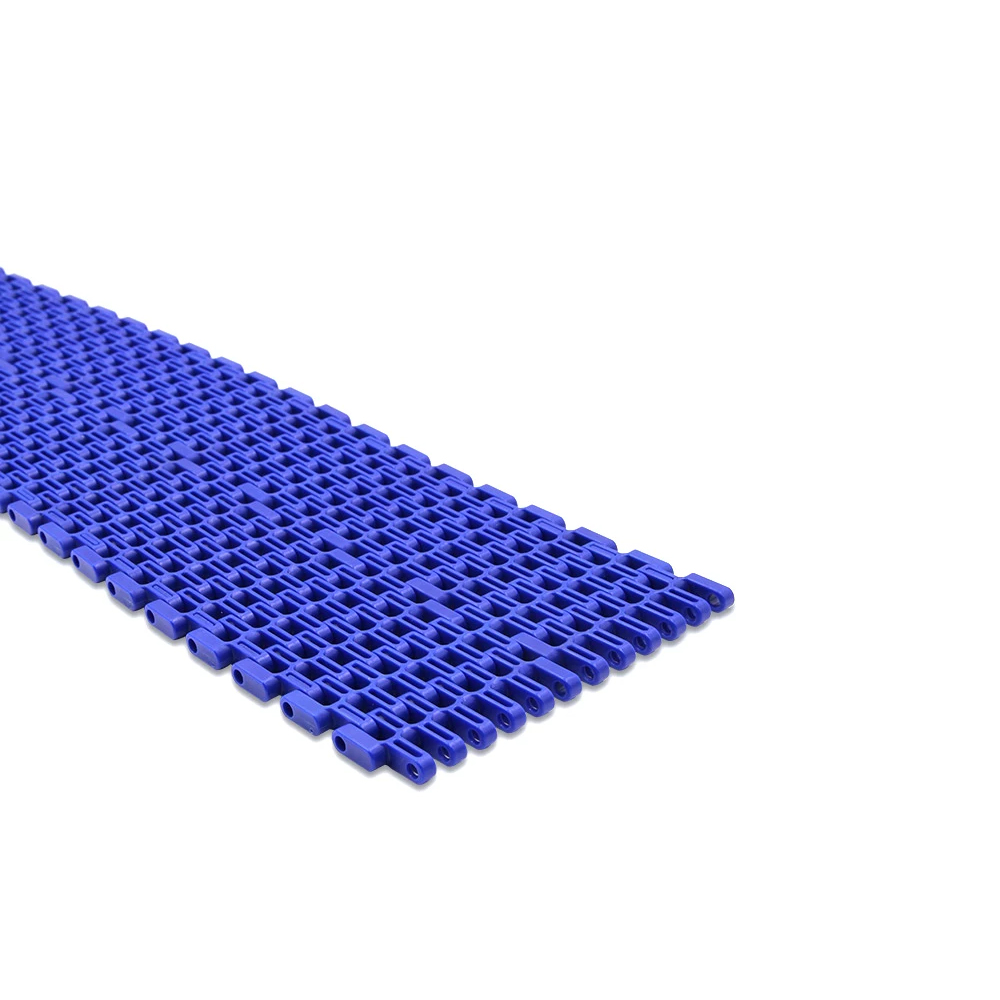

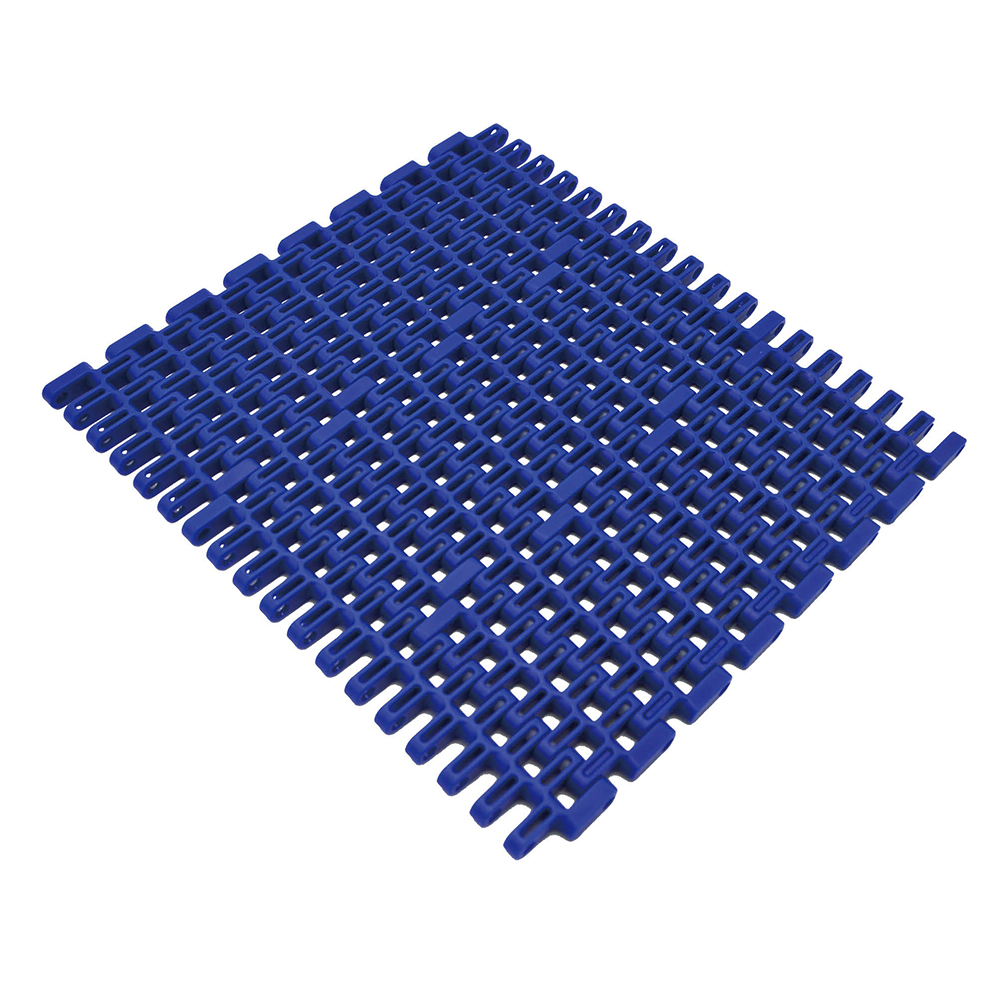

PL7300 Flush Grid Modular Belt

PL7300 flush grid modular belt is a widely‑used plastic modular conveyor belt with 25.4 mm pitch, specially developed for food, beverage, canning and general packaging industries. The belt features 26% open area, bringing excellent drainage and air circulation performance for production lines.

Constructed from high‑quality PP or POM material, with pins made of PP or Nylon. Lightweight design: POM version weighs 7 kg/m², PP version weighs 6 kg/m². Multiple standard widths from 76.2 mm up to 1524 mm, width increases by integer multiples of 76.2 mm to fit different conveyor frame sizes.

Main Features

• 26% open grid structure, good for water draining, air cooling and residue removing
• PP / POM belt body, wear‑resistant, anti‑corrosion, easy to clean
• Simple pin connection structure, convenient for on‑site assembly, disassembly and maintenance
• Light‑weight, reduce load for conveyor driving system
• Multiple width options, support customized color and special size
• Food‑contact suitable material for food & beverage processing environment

Application

Ideal for food processing, beverage filling, can conveying, packaged goods handling and other packaging production lines. It works perfectly for situations requiring water draining, air drying and material cooling on the conveyor.
