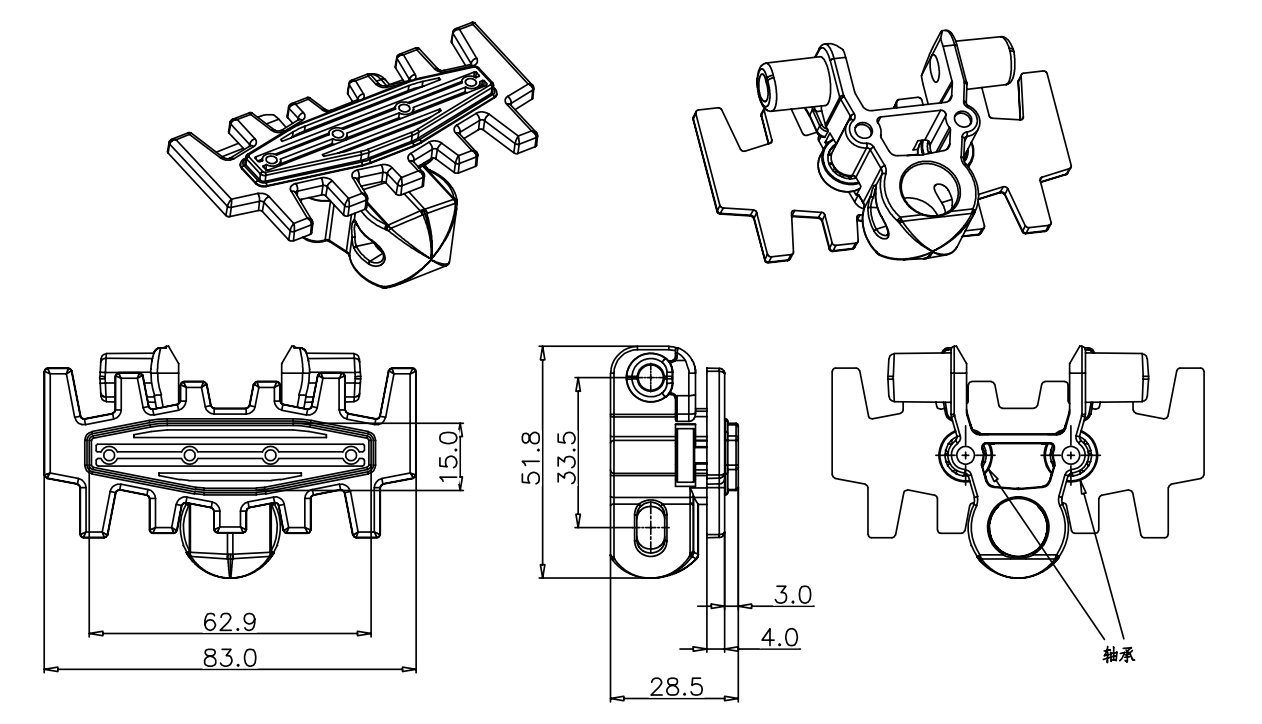

Flexible chain RM83C
|
Model |
Width |
Weight(kg/m) |
Working load(N) |
||
|
mm |
Inch |
||||
|
RM83C |
83 |
3.26 |
1.25 | 2800 | |
|
Pitch(mm) |
Min turning radius(mm) |
Min back turning radius(mm) |
|||
| 33.5 |
R150 |
RD100 |
|||
